BXT 3

Zeti > Packaging machinery Signode > Hand tools > BXT 3

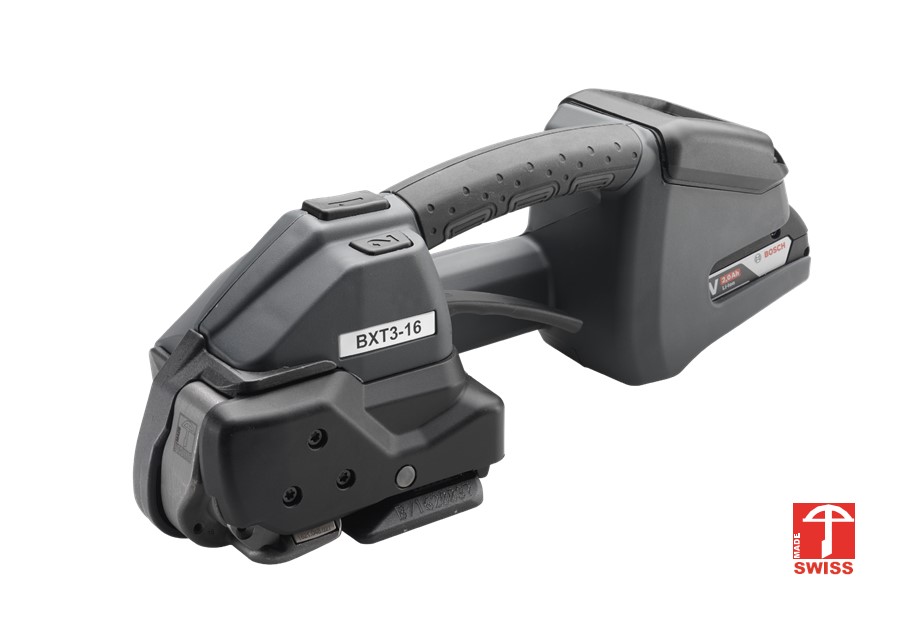

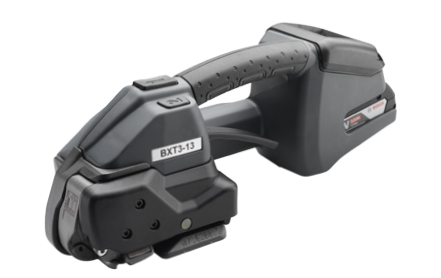

BXT3-13 / BXT3-16 / BXT3-19



BXT3-13 / BXT3-16 / BXT3-19



Hand Tool for Plastic Strapping

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Sed felis eget velit aliquet. Malesuada bibendum arcu vitae elementum curabitur vitae nunc sed. Pharetra vel turpis nunc eget lorem dolor sed viverra ipsum. Sed felis eget velit aliquet sagittis id consectetur. Pharetra convallis posuere morbi leo urna molestie at elementum. Nascetur ridiculus mus mauris vitae. Diam quam nulla porttitor massa id neque aliquam vestibulum morbi. Enim eu turpis egestas pretium aenean pharetra magna ac placerat. Duis tristique sollicitudin nibh sit. Eget lorem dolor sed viverra ipsum nunc aliquet bibendum enim. Magna ac placerat vestibulum lectus mauris ultrices. Sit amet consectetur adipiscing elit ut aliquam purus sit. Netus et malesuada fames ac turpis egestas. Tincidunt augue interdum velit euismod in pellentesque. Vulputate mi sit amet mauris commodo quis imperdiet massa. Tempor orci eu lobortis elementum nibh tellus molestie nunc non. Malesuada nunc vel risus commodo viverra maecenas accumsan. Volutpat lacus laoreet non curabitur gravida arcu ac tortor.

Ultricies lacus sed turpis tincidunt id aliquet risus feugiat in. Tincidunt id aliquet risus feugiat in ante metus dictum at. Nulla posuere sollicitudin aliquam ultrices sagittis orci a scelerisque. Ipsum consequat nisl vel pretium lectus quam. Neque aliquam vestibulum morbi blandit cursus risus at ultrices mi. Montes nascetur ridiculus mus mauris vitae ultricies leo integer. Volutpat odio facilisis mauris sit amet massa vitae. Nunc sed velit dignissim sodales ut eu sem integer vitae. Mattis vulputate enim nulla aliquet porttitor. Nulla aliquet porttitor lacus luctus accumsan tortor posuere. Vitae aliquet nec ullamcorper sit amet. Scelerisque eu ultrices vitae auctor.

Diam quis enim lobortis scelerisque fermentum dui faucibus. Risus quis varius quam quisque id diam vel. Tellus elementum sagittis vitae et leo duis ut diam quam. Sit amet cursus sit amet dictum sit amet justo. Nisi vitae suscipit tellus mauris a diam maecenas. Semper eget duis at tellus at urna condimentum mattis. Convallis convallis tellus id interdum velit laoreet id. Rhoncus urna neque viverra justo nec ultrices. Cursus in hac habitasse platea dictumst quisque sagittis purus sit. Sed risus pretium quam vulputate dignissim suspendisse. Suspendisse sed nisi lacus sed viverra. Nunc non blandit massa enim nec. At volutpat diam ut venenatis tellus in metus vulputate eu.

Full touch user interface
For easiest adjustment of parameters and tool status information for
operator
Variable tension speed
Controlled by finger pressure for sensitive packages
Favorite strapping function
For quick one touch switch of tool settings for varying packages
Strap alignment indication
To ensure that strap is inserted correctly for higher process security

Specifications

ZETI TECHCUT

SR-1650-SL



Fully Automatic flatbed die cutter with long lead-edge feeder

Jinya SR-1650-SL



All machines comply with European safety certificate (CE).



Strapping tool

BXT3-13

BXT3-16

BXT3-19

Operation
mode

auto / semi /
manual

auto
/ semi / manual

auto
/ semi / manual

Tension
force range  Standard

400–1200 N
(90–270 lbf)

900–2500 N
(200–560 lbf)

1300–4500 N
(290–1000 lbf)

Soft

150–750 N (22–165 lbf)

400–1360 N (90–305 lbf)

400–1600 N (90–340 lbf)

Variable
tension speed range

0–290 mm/s
(11.3 in/s)

0–220 mm/s
(8.6 in/s)

0–120 mm/s
(4.7 in/s)

Weight
(incl. battery)

3.6 kg (7.9 lb)

3.8 kg (8.4 lb)

4.3 kg (9.5 lb)

Dimension  (L x W x H)

370
x 141 x 135 mm

14.5”
x 5.5” x 5.3”

370
x 141 x 135 mm

14.5”
x 5.5” x 5.3”

370
x 143 x 135 mm

14.5”
x 5.6” x 5.3”

Working
temperature

-10 °C to +40
°C (14–104 °F)

-10°C to
+40°C (14–104 °F)

-10°C to
+40°C (14–104 °F)

Relative
humidity

up to 90%

up to 90%

up to 90%

   Battery / charger

Charger
type

Bosch

Bosch

Bosch

Battery
charger voltage

100  or 110 or 230 V

100 or 110 or
230 V

100 or 110 or
230 V

Charging
time

15–30 min

15–30 min

25–35 min

Battery
type

Bosch Li-Ion
18V, 2.0Ah

Bosch Li-Ion
18V, 2.0Ah

Bosch Li-Ion
18V, 4.0 Ah

Cycles
per battery charge

·   Low
tension



800



800



800

·   Medium
tension

600

400

500

·   High
tension

400

200

300
